What Makes This 8 mm Proximity Probe Different from Standard Sensors

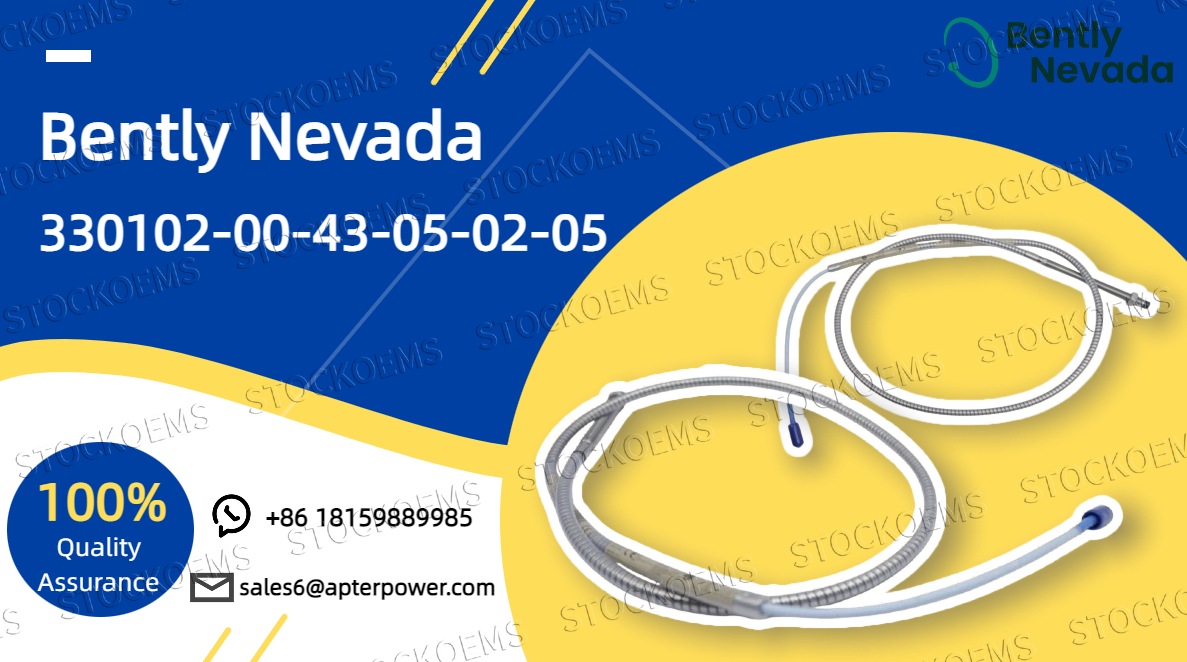

The 330102-00-43-05-02-05 is not another off-the-shelf eddy-current probe. It belongs to Bently Nevada’s 3300 XL 8 mm Proximity Transducer System, a family known for meeting API 670 standards for mechanical configuration, linear range, and temperature stability. What sets this specific configuration apart is its armored construction (the “02” option), 3/8-24 UNF threads, and a 5-meter integral cable with a gold-plated ClickLoc connector. The probe also carries hazardous-area approvals (CSA, ATEX, IECEx), making it suitable for installations where intrinsic safety or non-incendive ratings are required. Unlike generic sensors, this unit incorporates patented TipLoc and CableLoc designs. TipLoc creates a durable bond between the probe tip and body, while CableLoc provides 330 N (75 lbf) of pull strength, so rough handling during maintenance or conduit pulls does not break internal connections. For plant engineers who have experienced loose connectors or broken tips, this level of mechanical robustness is a deciding factor.

Where and When You Should Install This Specific Probe

This probe is designed for fluid-film bearing machines: steam and gas turbines, large centrifugal compressors, and generators. Its primary applications include radial vibration monitoring, axial position measurement, and Keyphasor reference for speed and phase tracking. The 5-meter total length matches the standard 3300 XL 5-meter Proximitor sensor, meaning no extension cable is needed if the distance from probe to sensor is within that length. The zero unthreaded length (option “00”) and 4.3-inch case length (option “43”) fit standard mounting blocks without requiring extra unthreaded clearance. However, this configuration is not for every situation. Avoid it when tip temperatures exceed 177 °C (350 °F); for hotter environments, choose an extended temperature range (ETR) probe such as the 330191 or 330193 series. Also, if the machine casing is prone to oil leakage, consider the FluidLoc cable option (options “11” or “12”) instead of the standard cable used here. For the vast majority of compressor and turbine trains operating below 177 °C, though, this armored probe delivers a reliable, long-service-life solution.

How to Install, Connect, and Verify the Probe for Reliable Operation

Installation follows a straightforward, field-proven process. First, screw the probe into the mounting hole using the recommended torque: 11.2 N·m (100 in·lbf) for standard forward-mounted probes. If you are engaging only the first three threads, reduce torque to 7.5 N·m (66 in·lbf). Second, connect the male ClickLoc connector to the extension cable or directly to the Proximitor sensor. Finger-tighten until you hear a distinct click – no tools are required unless you are mating with an older non-XL stainless steel connector, in which case finger-tight plus an extra 1/8 turn with pliers is acceptable. Third, gap the probe to the recommended setpoint for radial vibration: –9 Vdc, which corresponds to roughly 1.27 mm (50 mils) on an AISI 4140 steel target. Fourth, use a 3300 XL test plug (part 148722-01) to verify sensor performance without removing field wiring. Finally, protect the connector from turbine oil and moisture. Bently Nevada provides connector protectors (part 40180-02) and advises against using the supplied silicone tape inside the machine casing or anywhere that contacts oil. Once installed correctly, the probe delivers a linear range of 2 mm (80 mils) from 0.25 mm to 2.3 mm, with a scale factor of 7.87 V/mm (200 mV/mil) and interchangeability error as low as ±6.5% over 0-45 °C.
